Knife Mill
PULVERISETTE 11
For adaptation to your special application we offer extensive accessories. A 1.4 l grinding vessel made of autoclavable plastic PC with a standard lid and the standard knife made of stainless steel are included in the basic price of the instrument. When ordering a deviating specification of the standard accessories, please specify the exact article number of the part to be replaced.
Since the grinding times of the PULVERISETTE 11 are so short so that your samples can be processed very fast, it is worthwhile to order several grinding vessels right away for parallel use.
Additional knives are available on request.

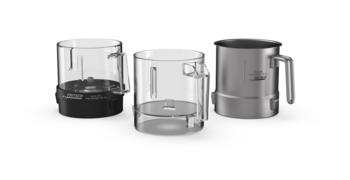

Grinding vessels 1.4 litre
-
Grinding vessels 1.4 litre
For all standard samples for the optimal observation of the comminution process
Standard grinding vessel made of plastic PC
autoclavable
included in the scope of delivery
For cryogenic comminution and harder samples Grinding vessel made of stainless steel 316L autoclavable
For verification of polymers Grinding vessel made of glass autoclavable
For oily samples, for BPA-free sample preparation, resistant to chemicals, dishwasher-proof up to 80° C
plasticiserfree
Grinding vessel made of Eastman Tritan Copolyester For not too hard materials, which are available in small pieces, for example for use in food quality control, pharmacy, chemistry, forensics and pathology Single-use grinding vessel
The grinding vessel made of autoclavable plastic PC is included. For cryogenic comminution and for the grinding of harder samples we also offer a grinding vessel made of autoclavable stainless steel 316L. Grinding vessels made of glass and Eastman Tritan Copolyester are also available.
Grinding Vessels

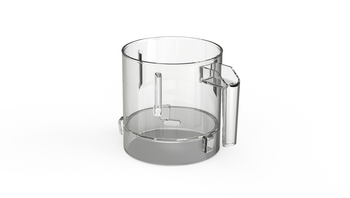

The grinding vessel made of plastic PC is included with the FRITSCH Knife Mill. The transparent grinding vessel made of scratch-resistant autoclavable plastic PC for the optimal observation of the comminution process is suitable for all standard samples.
| General specifications | |
| Material | Polycarbonate – PC |
| ISO/EN/DIN code | 7391-PC |
| Chemical composition | |
| Chemical Formula | HO-C6H4-R-C6H4-OH |
| Melting point | 150°C |
| Physical and mechanical properties | |
| Density | 1.20 g/cm³ |
| Hardness | HB 115 |
Explanations on hardness data

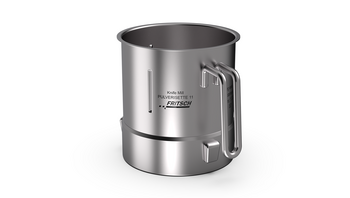

The grinding vessel made of autoclavable stainless steel 316L is suitable for cryogenic comminution and for the grinding of harder samples. Samples which are difficult to grind can be embrittled with liquid nitrogen directly in the grinding vessel made of stainless steel 316L. The sample materials remain 100 % cold.
For this purpose, please select the special lid, order no. 11.3220.00 with the easily exchangeable single-use sieve insert – the reliable protection against contamination. Single-use sieve inserts can be ordered with order no. 11.3224.00.
| General specifications | |
| Material | Stainless steel – 1.4404/316L |
| ISO/EN/DIN code | X2CrNiMo17-12-2 |
| Chemical composition | |
| Element | Share % |
| Iron – Fe | approx. 62.8 |
| Carbon – C | 0.03 |
| Silicon – Si | 1 |
| Manganese – Mn | 2 |
| Phosphorus – P | 0.045 |
| Sulphur – S | 0.015 |
| Chromium – Cr | 18.5 |
| Molybdenum – Mo | 2.50 |
| Nickel – Ni | 13.00 |
| Nitrogen – N | 0.110 |
| Physical and mechanical properties | |
| Density | 8.0 g/cm³ |
| Hardness | 215 HB |
Explanations on hardness data
The grinding vessel made of Eastman Tritan Copolyester is suitable for the comminution of oily samples and for BPA-free sample preparation and which is plasticiserfree, resistant to chemicals and dishwasher-proof up to 80° C.
| General specifications | |
| Material | Eastman Tritan Copolyester |
| TX1001 | |
| General Properties | |
| food safe | |
| tasteless | |
| heat resistant up to 85°C | |
| colour stable | |
| resistant to chemicals | |
| dishwasher safe up to max. 80°C (80 cycles, with manual cleaning up to 300 cycles) | |
| free from bisphenol A (BPA) and free from plasticisers | |
| Physical and mechanical properties | |
| Density | 1.18 g/cm³ |
| Hardness | Rockwell 112 |
Explanations on hardness data

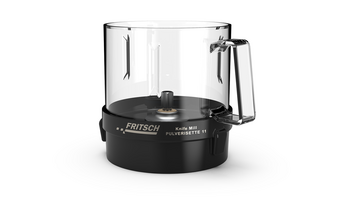

The grinding vessel made of glass is autoclavable and ideal for food-safe analysis and verification of polymers.
| General specifications | |
| Material | Borosilicate glass – 3.3 |
| Chemische Zusammensetzung | |
| Chemical Composition | Anteil % |
| SIO2 | 81 |
| B2O3 | 13 |
| Na2O + K2O | 4 |
| Al2O3 | 2 |
| Physical and mechanical properties | |
| Density | 2.23 g/cm³ |
Explanations on hardness data
Lids for grinding vessels
-
LIDS FOR GRINDING VESSELS
For soft, medium-hard samples, which do not need to be compressed Standard lid made of silicone autoclavable
included in the scope of the delivery
For moist, liquid and viscous samples To reduce the grinding chamber volume down to 0.54 litre
For manually compressing and loosening up the sample material
ideal for smaller sample quantities or difficult to grind materials for achieving a homogeneous sample in a narrow particle size range

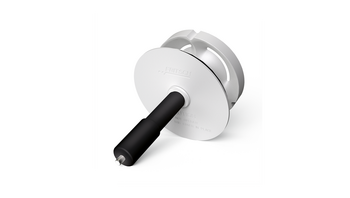

Vario-Lid system with plunger made of plastic PP and reduction sample pusher autoclavable
For dry, solid samples, to reduce the grinding chamber volume of down to 0.54 litre For manually compressing or loosening up the sample material
Ideal for smaller sample quantities or difficult to grind materials for achieving a homogeneous sample in a narrow particle size range
Reduction sample pusher for dry, solid samples for Vario-Lid system with plunger autoclavable
For cryogenic comminution with single single-use-sieve inserts Special lid made of plastic PP autoclavable
For exchanging the sieve insert in the special lid for cryogenic grinding Set of single-use sieve inserts

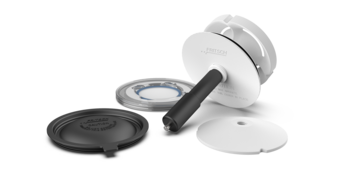

Available is a standard lid made of silicone, a Vario-Lid system with plunger mad of plastic PP and reduction sample pusher, as well as a reduction sample pusher. For cryogenic comminution we offer a special lid with single-use sieve insert.
Additional lids are available on request.
Lids for grinding vessel

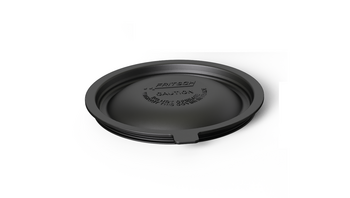

The included standard lid made of silicone is ideal for the comminution of soft, medium-hard samples which do not need to be compressed.
| General specifications | |
| Material | Silicone LR 3003/70 A/B |
| Physical and mechanical properties | |
| Density | 1.14 g/cm³ |
| Hardness | 70 Shore A |
Explanations on hardness data
The freely adjustable Vario-Lid system made of plastic PP fulfils two important requirements at the same time: It can be used to reduce the grinding chamber volume down to 0.54 litre and to manually compress and loosen up the sample material at the beginning and at any time during comminution. Thus you always achieve a homogeneous sample in a narrow particle size range even for smaller
sample quantities and for difficult-to-grind materials. The Vario-Lid system is delivered as a standard with a reduction sample pusher for moist, liquid and viscous sample materials such as tomatoes, cucumbers or yoghurt. It automatically returns rising liquids during the comminution and can be used for most sample materials.
A reduction sample pusher can be ordered as an option for dry, solid samples under order no. 11.3189.16.
| General specifications | |
| Material | Polypropylene – PP 1502 |
| ISO/EN/DIN code | 1183 |
| Chemical composition | |
| Chemical Formula | C3H6 |
| Melting point | 163°C |
| Max. application temp. constant | 100° C |
| Max. application temp. briefly | 140° |
| Physical and mechanical properties | |
| Density | 0.903 g/cm³ |
| Hardness | Shore D70 |
Explanations on hardness data

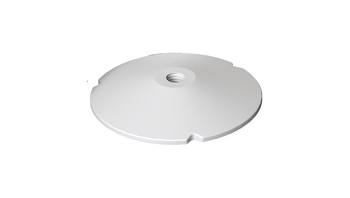

Reduction sample pusher for dry, solid samples for Vario-Lid system with plunger made of plastic PP.
The sample material can be manually compressed or loosened at the beginning and at any time during comminution.
| General specifications | |
| Material | Polypropylene – PP 1502 |
| ISO/EN/DIN code | 1183 |
| Chemical composition | |
| Chemical Formula | C3H6 |
| Melting point | 163°C |
| Max. application temp. constant | 100° C |
| Max. application temp. briefly | 140° |
| Physical and mechanical properties | |
| Density | 0.903 g/cm³ |
| Hardness | Shore D70 |
Explanations on hardness data

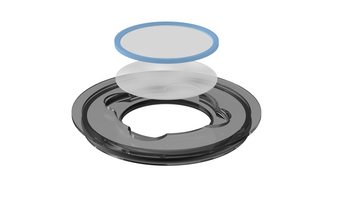

The special lid made of plastic PC for cryogenic comminution with single-use sieve insert for cryogenic comminution with the grinding vessel made of stainless steel 316L: order no. 11.3280.00.
For this lid we offer a set of single-use sieve inserts (set = 10 inserts): order no. 11.3224.00.
| General specifications | |
| Material | Polycarbonate – PC |
| ISO/EN/DIN code | 7391-PC |
| Chemical composition | |
| Chemical Formula | HO-C6H4-R-C6H4-OH |
| Melting point | 150°C |
| Physical and mechanical properties | |
| Density | 1.20 g/cm³ |
| Hardness | HB 115 |
Explanations on hardness data
For exchanging the sieve insert in the special lid for cryogenic grinding.
The single-use sieve insert guarantees reliable protection against contamination.

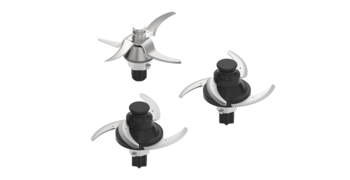

Knives
-
Knives
For nearly all materials Standard knife made of stainless steel
autoclavable
included in the scope of delivery
For brittle, hard samples Sickle knife made of stainless steel
autoclavable

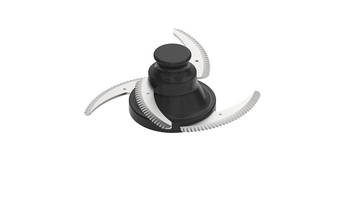

For fibrous, tough and sinewy samples Sickle knife with serrated blades made of stainless steel
autoclavable
For metal-free comminution Sickel knife with serrated blades TIN-coated
autoclavable
The standard knife made of stainless steel can be used for comminution of nearly all materials due to its four blades and a well-conceived geometry. For comminution of especially fibrous, tough or sinewy samples, we recommend the knife with serrated blades made of stainless steel.
Additional knives are available on request.
Knives for standard grinding vessels, grinding vessels made of stainless steel and Eastman Tritan Copolyester

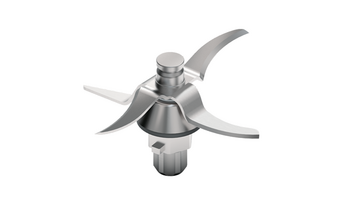

The standard knife with four cutting edges of the PULVERISETTE 11 (included with the instrument) can be used for the comminution of nearly all materials. The specially curved knife blades achieve with up to 56,000 cutting processes per minute a homogeneous sample significantly faster than comparable instruments at the same grinding time and rotational speed. And in reverse mode, the knives enable a better thorough mixing if necessary.
| General specifications | |
| Material | Stainless steel – 1.4028 |
| ISO/EN/DIN code | X30Cr13 / DIN EN 10088-3 / AISI 420 |
| Chemical composition | |
| Element | Share % |
| Iron – Fe | 87.74–85.65 |
| Carbon – C | 0.26–0.35 |
| Chromium – Cr | 12.00–14.00 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | 24 HRC |
Explanations on hardness data

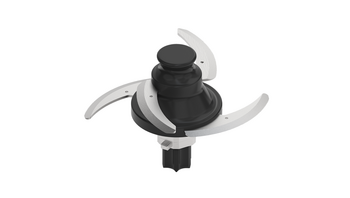

The sickle knife made of stainless steel suitable for the comminution of brittle, hard samples.
| General specifications | |
| Material | Stainless steel – 1.4034 |
| ISO/EN/DIN code | X46Cr13 / DIN EN 10088-3 / AISI 420 |
| Chemical composition | |
| Element | Share % |
| Iron – Fe | 87.07–82.93 |
| Carbon – C | 0.43–0.5 |
| Silicon – Si | 0–max. 1.0 |
| Manganese – Mn | 0–max. 1.0 |
| Phosphorus – P | 0–max 0.04 |
| Sulphur – S | 0–max. 0.03 |
| Chromium – Cr | 12.5–14.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | 245 HB |
Explanations on hardness data

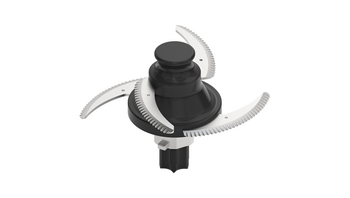

The sickle knife with serrated blades made of stainless steel is especially suited for the comminution of especially fibrous, tough or sinewy samples.
| General specifications | |
| Material | Stainless steel – 1.4034 |
| ISO/EN/DIN code | X46Cr13 / DIN EN 10088-3 / AISI 420 |
| Chemical composition | |
| Element | Share % |
| Iron – Fe | 87.07–82.93 |
| Carbon – C | 0.43–0.5 |
| Silicon – Si | 0–max. 1.0 |
| Manganese – Mn | 0–max. 1.0 |
| Phosphorus – P | 0–max 0.04 |
| Sulphur – S | 0–max. 0.03 |
| Chromium – Cr | 12.5–14.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | 245 HB |
Explanations on hardness data

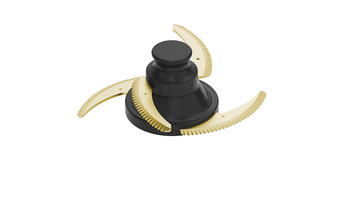

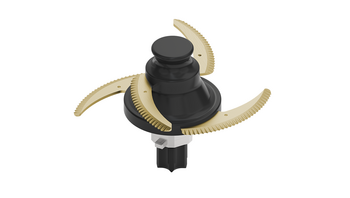

The sickle knife with serrated blades, TiN-coated, is optimal for metal-free grinding.
Knives for grinding vessel made of glass

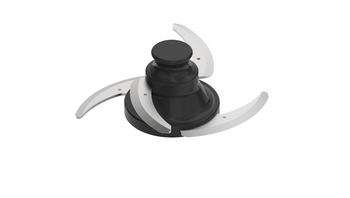

The sickle knife made of stainless steel suitable for the comminution of brittle, hard samples.
| General specifications | |
| Material | Stainless steel – 1.4034 |
| ISO/EN/DIN code | X46Cr13 / DIN EN 10088-3 / AISI 420 |
| Chemical composition | |
| Element | Share % |
| Iron – Fe | 87.07–82.93 |
| Carbon – C | 0.43–0.5 |
| Silicon – Si | 0–max. 1.0 |
| Manganese – Mn | 0–max. 1.0 |
| Phosphorus – P | 0–max 0.04 |
| Sulphur – S | 0–max. 0.03 |
| Chromium – Cr | 12.5–14.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | 245 HB |
Explanations on hardness data
The sickle knife with serrated blades made of stainless steel is especially suited for the comminution of especially fibrous, tough or sinewy samples.
| General specifications | |
| Material | Stainless steel – 1.4034 |
| ISO/EN/DIN code | X46Cr13 / DIN EN 10088-3 / AISI 420 |
| Chemical composition | |
| Element | Share % |
| Iron – Fe | 87.07–82.93 |
| Carbon – C | 0.43–0.5 |
| Silicon – Si | 0–max. 1.0 |
| Manganese – Mn | 0–max. 1.0 |
| Phosphorus – P | 0–max 0.04 |
| Sulphur – S | 0–max. 0.03 |
| Chromium – Cr | 12.5–14.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | 245 HB |
Explanations on hardness data
The sickle knife with serrated blades, TiN-coated, is optimal for metal-free grinding.

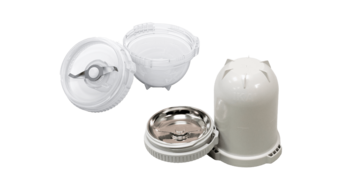

Single-use grinding vessels
The single-use grinding vessels are ideal for the use in pharmacy, forensics and pathology, RNA/DNA extraction, bacteriology and chemistry.
Single-use grinding vessels

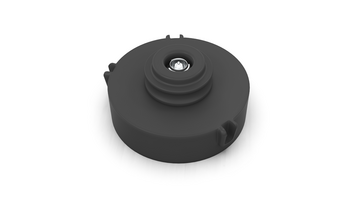

Adapter for single-use grinding vessel 40 ml and 100 ml volume.
For the use of the Knife Mill PULVERISETTE 11 in single-use technology, we have developed an adapter for single-use grinding vessels 40 ml and 100 ml volume for the comminution of not too hard materials, which are available in small pieces. Your advantage: safe protection against cross contamination, no need for cleaning and the sample can be stored in the single-use grinding vessels.
Ideal for use in food quality control, pharmacy, chemistry, forensics and pathology.

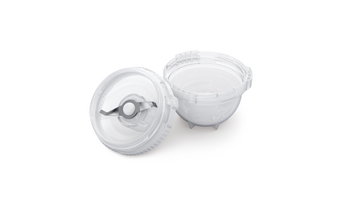

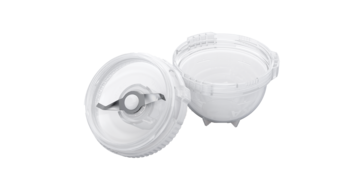

Set of single-use grinding vessels 40 ml volume made of plastic PP (set = 10 pieces).
The single-use grinding vessels are ideal for use in food quality control, pharmacy, chemistry, forensics and pathology.
| General specifications | |
| Material | Polypropylene – PP 1502 |
| ISO/EN/DIN code | 1183 |
| Chemical composition | |
| Chemical Formula | C3H6 |
| Melting point | 163°C |
| Max. application temp. constant | 100° C |
| Max. application temp. briefly | 140° |
| Physical and mechanical properties | |
| Density | 0.903 g/cm³ |
| Hardness | Shore D70 |
Explanations on hardness data
Set single-use grinding vessels 40 ml volume made of plastic PP (set = 100 pieces).
The single-use grinding vessels are ideal for the use in in food quality control, pharmacy, chemistry, forensics and pathology.
| General specifications | |
| Material | Polypropylene – PP 1502 |
| ISO/EN/DIN code | 1183 |
| Chemical composition | |
| Chemical Formula | C3H6 |
| Melting point | 163°C |
| Max. application temp. constant | 100° C |
| Max. application temp. briefly | 140° |
| Physical and mechanical properties | |
| Density | 0.903 g/cm³ |
| Hardness | Shore D70 |
Explanations on hardness data
Set of single-use grinding vessels 100 ml volume made of plastic PP (set = 10 pieces).
The single-use grinding vessels are ideal for the use in food quality control, pharmacy, chemistry, forensics and pathology.
| General specifications | |
| Material | Polypropylene – PP 1502 |
| ISO/EN/DIN code | 1183 |
| Chemical composition | |
| Chemical Formula | C3H6 |
| Melting point | 163°C |
| Max. application temp. constant | 100° C |
| Max. application temp. briefly | 140° |
| Physical and mechanical properties | |
| Density | 0.903 g/cm³ |
| Hardness | Shore D70 |
Explanations on hardness data
Set single-use grinding vessels 100 ml volume made of plastic PP (set = 100 pieces).
The single-use grinding vessels are ideal for use in food quality control, pharmacy, chemistry, forensics and pathology.
| General specifications | |
| Material | Polypropylene – PP 1502 |
| ISO/EN/DIN code | 1183 |
| Chemical composition | |
| Chemical Formula | C3H6 |
| Melting point | 163°C |
| Max. application temp. constant | 100° C |
| Max. application temp. briefly | 140° |
| Physical and mechanical properties | |
| Density | 0.903 g/cm³ |
| Hardness | Shore D70 |
Explanations on hardness data
Software
The Software P-11Control for Windows: for automatic control of the mill via USB, for editing, saving and managing of the SOPs with grinding report generator.

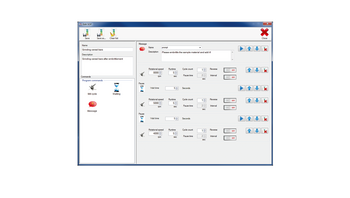

Software P-11Control for Windows
The Software P-11Control for Windows: for automatic control of the mill via USB, for editing, saving and managing of the SOPs with grinding report generator.

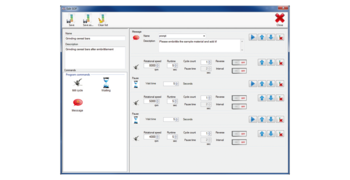

With the software P-11Control, the mill can be controlled via the integrated USB port. SOPs can be edited, saved and managed directly on the connected laptop via drag & drop. Reversion-proof grinding reports can be created, archived quickly and easily with the integrated report generator.
The software P-11Control offers a data interface for the connection to your laboratory database.
Additional accessories
Additionally available are a scraper, replacement knife coupling and a certification for your Knife Mill PULVERISETTE 11.
Additional Accessories
The scraper made of robust plastic is a useful helper in the laboratory and can be utilized to remove sample material completely from the grinding vessel.
| General specifications | |
| Material | PUR-Elastomer – TPU 93A |
| Material number | 2634 |
| Chemical composition | |
| Chemical Formula | C3H7NO2 |
| Physical and mechanical properties | |
| Density ISO 1183 | 1.24 |
| Hardness Shore (A/D) | A93 |
Explanations on hardness data
A replacement knife coupling for the protection of the knife holder is already included in the delivery of the instrument. We recommend replacing the knife coupling after 200 hours of operation to avoid damage to the instrument.

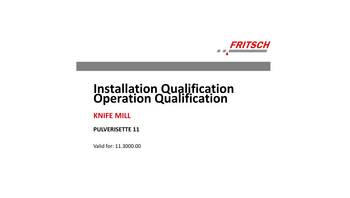

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Knife Mill PULVERISETTE 11.
